rpc.h File Reference

#include <event2/util.h>
#include <event2/visibility.h>

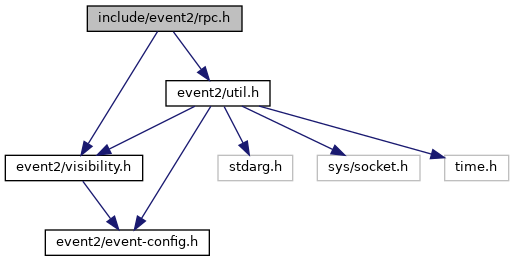

Include dependency graph for rpc.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	EVTAG_HAS(msg, member)    ((msg)->member##_set == 1)
#define	EVTAG_ASSIGN(msg, member, value)    (*(msg)->base->member##_assign)((msg), (value))
#define	EVTAG_ASSIGN_WITH_LEN(msg, member, value, len)    (*(msg)->base->member##_assign)((msg), (value), (len))
#define	EVTAG_GET(msg, member, pvalue)    (*(msg)->base->member##_get)((msg), (pvalue))
#define	EVTAG_GET_WITH_LEN(msg, member, pvalue, plen)    (*(msg)->base->member##_get)((msg), (pvalue), (plen))
#define	EVTAG_ARRAY_ADD_VALUE(msg, member, value)    (*(msg)->base->member##_add)((msg), (value))
#define	EVTAG_ARRAY_ADD(msg, member)    (*(msg)->base->member##_add)(msg)
#define	EVTAG_ARRAY_GET(msg, member, offset, pvalue)    (*(msg)->base->member##_get)((msg), (offset), (pvalue))
#define	EVTAG_ARRAY_LEN(msg, member)   ((msg)->member##_length)
#define	EVRPC_STRUCT(rpcname)   struct evrpc_req__##rpcname
#define	EVRPC_HEADER(rpcname, reqstruct, rplystruct)
#define	EVRPC_MAKE_CTX(rpcname, reqstruct, rplystruct, pool, request, reply, cb, cbarg)
#define	EVRPC_GENERATE(rpcname, reqstruct, rplystruct)
#define	EVRPC_REQUEST_HTTP(rpc_req)   (rpc_req)->http_req
#define	EVRPC_REQUEST_DONE(rpc_req)
#define	EVRPC_REGISTER(base, name, request, reply, callback, cbarg)
#define	EVRPC_UNREGISTER(base, name)   evrpc_unregister_rpc((base), #name)
#define	EVRPC_MAKE_REQUEST(name, pool, request, reply, cb, cbarg)    evrpc_send_request_##name((pool), (request), (reply), (cb), (cbarg))
#define	INPUT   EVRPC_INPUT
#define	OUTPUT   EVRPC_OUTPUT

Enumerations
enum	EVRPC_HOOK_TYPE { EVRPC_INPUT , EVRPC_OUTPUT }
enum	EVRPC_HOOK_RESULT { EVRPC_TERMINATE = -1 , EVRPC_CONTINUE = 0 , EVRPC_PAUSE = 1 }

Functions
EVENT2_EXPORT_SYMBOL struct evrpc_request_wrapper *	evrpc_make_request_ctx (struct evrpc_pool *pool, void *request, void *reply, const char *rpcname, void(*req_marshal)(struct evbuffer *, void *), void(*rpl_clear)(void *), int(*rpl_unmarshal)(void *, struct evbuffer *), void(*cb)(struct evrpc_status *, void *, void *, void *), void *cbarg)

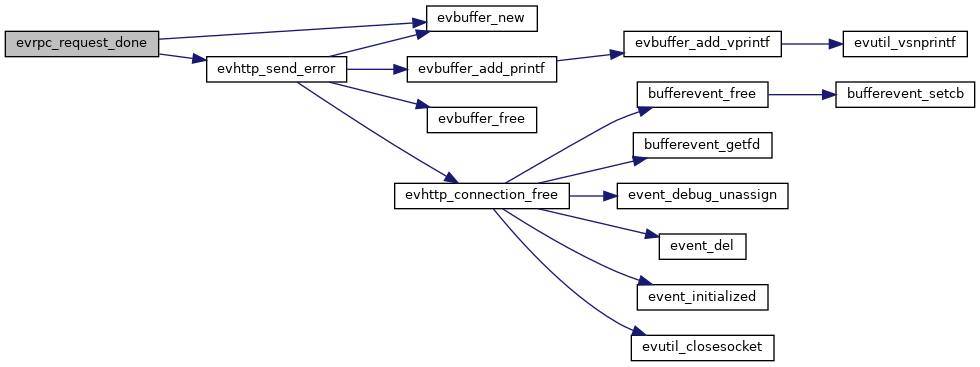

EVENT2_EXPORT_SYMBOL void	evrpc_request_done (struct evrpc_req_generic *req)
EVENT2_EXPORT_SYMBOL void *	evrpc_get_request (struct evrpc_req_generic *req)
EVENT2_EXPORT_SYMBOL void *	evrpc_get_reply (struct evrpc_req_generic *req)
EVENT2_EXPORT_SYMBOL struct evrpc_base *	evrpc_init (struct evhttp *server)
EVENT2_EXPORT_SYMBOL void	evrpc_free (struct evrpc_base *base)
EVENT2_EXPORT_SYMBOL int	evrpc_register_rpc (struct evrpc_base *, struct evrpc *, void(*)(struct evrpc_req_generic *, void *), void *)
EVENT2_EXPORT_SYMBOL int	evrpc_unregister_rpc (struct evrpc_base *base, const char *name)
EVENT2_EXPORT_SYMBOL int	evrpc_make_request (struct evrpc_request_wrapper *ctx)
EVENT2_EXPORT_SYMBOL struct evrpc_pool *	evrpc_pool_new (struct event_base *base)

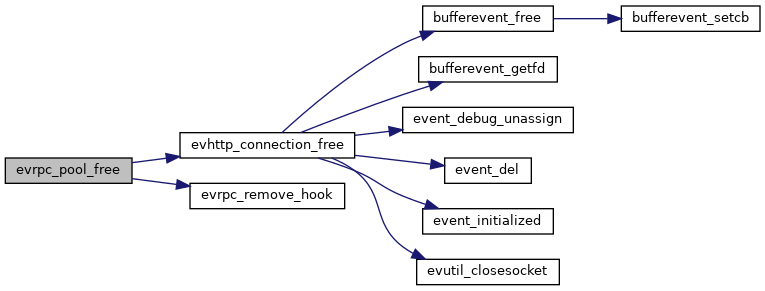

EVENT2_EXPORT_SYMBOL void	evrpc_pool_free (struct evrpc_pool *pool)
EVENT2_EXPORT_SYMBOL void	evrpc_pool_add_connection (struct evrpc_pool *pool, struct evhttp_connection *evcon)
EVENT2_EXPORT_SYMBOL void	evrpc_pool_remove_connection (struct evrpc_pool *pool, struct evhttp_connection *evcon)
EVENT2_EXPORT_SYMBOL void	evrpc_pool_set_timeout (struct evrpc_pool *pool, int timeout_in_secs)
EVENT2_EXPORT_SYMBOL void *	evrpc_add_hook (void *vbase, enum EVRPC_HOOK_TYPE hook_type, int(*cb)(void *, struct evhttp_request *, struct evbuffer *, void *), void *cb_arg)
EVENT2_EXPORT_SYMBOL int	evrpc_remove_hook (void *vbase, enum EVRPC_HOOK_TYPE hook_type, void *handle)
EVENT2_EXPORT_SYMBOL int	evrpc_resume_request (void *vbase, void *ctx, enum EVRPC_HOOK_RESULT res)
EVENT2_EXPORT_SYMBOL void	evrpc_hook_add_meta (void *ctx, const char *key, const void *data, size_t data_size)
EVENT2_EXPORT_SYMBOL int	evrpc_hook_find_meta (void *ctx, const char *key, void **data, size_t *data_size)
EVENT2_EXPORT_SYMBOL struct evhttp_connection *	evrpc_hook_get_connection (void *ctx)
EVENT2_EXPORT_SYMBOL int	evrpc_send_request_generic (struct evrpc_pool *pool, void *request, void *reply, void(*cb)(struct evrpc_status *, void *, void *, void *), void *cb_arg, const char *rpcname, void(*req_marshal)(struct evbuffer *, void *), void(*rpl_clear)(void *), int(*rpl_unmarshal)(void *, struct evbuffer *))
EVENT2_EXPORT_SYMBOL int	evrpc_register_generic (struct evrpc_base *base, const char *name, void(*callback)(struct evrpc_req_generic *, void *), void *cbarg, void *(*req_new)(void *), void *req_new_arg, void(*req_free)(void *), int(*req_unmarshal)(void *, struct evbuffer *), void *(*rpl_new)(void *), void *rpl_new_arg, void(*rpl_free)(void *), int(*rpl_complete)(void *), void(*rpl_marshal)(struct evbuffer *, void *))
EVENT2_EXPORT_SYMBOL struct evrpc_pool *	evrpc_request_get_pool (struct evrpc_request_wrapper *ctx)
EVENT2_EXPORT_SYMBOL void	evrpc_request_set_pool (struct evrpc_request_wrapper *ctx, struct evrpc_pool *pool)
EVENT2_EXPORT_SYMBOL void	evrpc_request_set_cb (struct evrpc_request_wrapper *ctx, void(*cb)(struct evrpc_status *, void *request, void *reply, void *arg), void *cb_arg)

Detailed Description

This header files provides basic support for an RPC server and client.

To support RPCs in a server, every supported RPC command needs to be defined and registered.

EVRPC_HEADER(SendCommand, Request, Reply);

SendCommand is the name of the RPC command. Request is the name of a structure generated by event_rpcgen.py. It contains all parameters relating to the SendCommand RPC. The server needs to fill in the Reply structure. Reply is the name of a structure generated by event_rpcgen.py. It contains the answer to the RPC.

To register an RPC with an HTTP server, you need to first create an RPC base with:

struct evrpc_base *base = evrpc_init(http);

A specific RPC can then be registered with

EVRPC_REGISTER(base, SendCommand, Request, Reply, FunctionCB, arg);

when the server receives an appropriately formatted RPC, the user callback is invoked. The callback needs to fill in the reply structure.

void FunctionCB(EVRPC_STRUCT(SendCommand)* rpc, void *arg);

To send the reply, call EVRPC_REQUEST_DONE(rpc);

See the regression test for an example.

Macro Definition Documentation

EVRPC_GENERATE

#define EVRPC_GENERATE	(		rpcname,
			reqstruct,
			rplystruct
	)

Value:

    int evrpc_send_request_##rpcname(struct evrpc_pool *pool,   \
        struct reqstruct *request, struct rplystruct *reply,    \
        void (*cb)(struct evrpc_status *,               \
        struct reqstruct *, struct rplystruct *, void *cbarg),  \
        void *cbarg) {                      \
    return evrpc_send_request_generic(pool, request, reply, \
        (void (*)(struct evrpc_status *, void *, void *, void *))cb, \
        cbarg,                          \
        #rpcname,                           \
        (void (*)(struct evbuffer *, void *))reqstruct##_marshal,   \
        (void (*)(void *))rplystruct##_clear,           \
        (int (*)(void *, struct evbuffer *))rplystruct##_unmarshal); \
}

Generates the code for receiving and sending an RPC message

EVRPC_GENERATE is used to create the code corresponding to sending and receiving a particular RPC message

Parameters

rpcname	the name of the RPC
reqstruct	the name of the RPC request structure
replystruct	the name of the RPC reply structure

See also

EVRPC_HEADER()

EVRPC_HEADER

#define EVRPC_HEADER	(		rpcname,
			reqstruct,
			rplystruct
	)

Value:

EVRPC_STRUCT(rpcname) { \
    struct evrpc_hook_meta *hook_meta; \
    struct reqstruct* request; \
    struct rplystruct* reply; \
    struct evrpc* rpc; \
    struct evhttp_request* http_req; \
    struct evbuffer* rpc_data; \
};                                   \
EVENT2_EXPORT_SYMBOL \
int evrpc_send_request_##rpcname(struct evrpc_pool *, \
    struct reqstruct *, struct rplystruct *, \
    void (*)(struct evrpc_status *, \
    struct reqstruct *, struct rplystruct *, void *cbarg),  \
    void *);

Creates the definitions and prototypes for an RPC

You need to use EVRPC_HEADER to create structures and function prototypes needed by the server and client implementation. The structures have to be defined in an .rpc file and converted to source code via event_rpcgen.py

Parameters

rpcname	the name of the RPC
reqstruct	the name of the RPC request structure
replystruct	the name of the RPC reply structure

See also

EVRPC_GENERATE()

EVRPC_MAKE_CTX

#define EVRPC_MAKE_CTX	(		rpcname,
			reqstruct,
			rplystruct,
			pool,
			request,
			reply,
			cb,
			cbarg
	)

Value:

    evrpc_make_request_ctx(pool, request, reply,            \
        #rpcname,                           \
        (void (*)(struct evbuffer *, void *))reqstruct##_marshal,   \
        (void (*)(void *))rplystruct##_clear,           \
        (int (*)(void *, struct evbuffer *))rplystruct##_unmarshal, \
        (void (*)(struct evrpc_status *, void *, void *, void *))cb, \
        cbarg)

Creates a context structure that contains rpc specific information.

EVRPC_MAKE_CTX is used to populate a RPC specific context that contains information about marshaling the RPC data types.

Parameters

rpcname	the name of the RPC
reqstruct	the name of the RPC request structure
replystruct	the name of the RPC reply structure
pool	the evrpc_pool over which to make the request
request	a pointer to the RPC request structure object
reply	a pointer to the RPC reply structure object
cb	the callback function to call when the RPC has completed
cbarg	the argument to supply to the callback

EVRPC_MAKE_REQUEST

#define EVRPC_MAKE_REQUEST	(		name,
			pool,
			request,
			reply,
			cb,
			cbarg
	)		evrpc_send_request_##name((pool), (request), (reply), (cb), (cbarg))

launches an RPC and sends it to the server

EVRPC_MAKE_REQUEST() is used by the client to send an RPC to the server.

Parameters

name	the name of the RPC
pool	the evrpc_pool that contains the connection objects over which the request should be sent.
request	a pointer to the RPC request structure - it contains the data to be sent to the server.
reply	a pointer to the RPC reply structure. It is going to be filled if the request was answered successfully
cb	the callback to invoke when the RPC request has been answered
cbarg	an additional argument to be passed to the client

Returns

0 on success, -1 on failure

EVRPC_REGISTER

#define EVRPC_REGISTER	(		base,
			name,
			request,
			reply,
			callback,
			cbarg
	)

Value:

    evrpc_register_generic(base, #name,             \
        (void (*)(struct evrpc_req_generic *, void *))callback, cbarg, \
        (void *(*)(void *))request##_new_with_arg, NULL,        \
        (void (*)(void *))request##_free,               \
        (int (*)(void *, struct evbuffer *))request##_unmarshal,    \
        (void *(*)(void *))reply##_new_with_arg, NULL,      \
        (void (*)(void *))reply##_free, \
        (int (*)(void *))reply##_complete, \
        (void (*)(struct evbuffer *, void *))reply##_marshal)

register RPCs with the HTTP Server

registers a new RPC with the HTTP server, each RPC needs to have a unique name under which it can be identified.

Parameters

base	the evrpc_base structure in which the RPC should be registered.
name	the name of the RPC
request	the name of the RPC request structure
reply	the name of the RPC reply structure
callback	the callback that should be invoked when the RPC is received. The callback has the following prototype void (callback)(EVRPC_STRUCT(Message) rpc, void *arg)
cbarg	an additional parameter that can be passed to the callback. The parameter can be used to carry around state.

EVRPC_REQUEST_DONE

#define EVRPC_REQUEST_DONE

(

rpc_req

)

Value:

  do { \
  struct evrpc_req_generic *req_ = (struct evrpc_req_generic *)(rpc_req); \
  evrpc_request_done(req_);                 \
} while (0)

Creates the reply to an RPC request

EVRPC_REQUEST_DONE is used to answer a request; the reply is expected to have been filled in. The request and reply pointers become invalid after this call has finished.

Parameters

rpc_req

the rpc request structure provided to the server callback

EVRPC_REQUEST_HTTP

#define EVRPC_REQUEST_HTTP

(

rpc_req

)

(rpc_req)->http_req

Provides access to the HTTP request object underlying an RPC

Access to the underlying http object; can be used to look at headers or for getting the remote ip address

Parameters

rpc_req

the rpc request structure provided to the server callback

Returns

an struct evhttp_request object that can be inspected for HTTP headers or sender information.

EVRPC_STRUCT

#define EVRPC_STRUCT

(

rpcname

)

struct evrpc_req__##rpcname

The type of a specific RPC Message

Parameters

rpcname

the name of the RPC message

EVRPC_UNREGISTER

#define EVRPC_UNREGISTER	(		base,
			name
	)		evrpc_unregister_rpc((base), #name)

Unregisters an already registered RPC

Parameters

base	the evrpc_base object from which to unregister an RPC
name	the name of the rpc to unregister

Returns

-1 on error or 0 when successful.

See also

EVRPC_REGISTER()

EVTAG_ARRAY_ADD

#define EVTAG_ARRAY_ADD	(		msg,
			member
	)		(*(msg)->base->member##_add)(msg)

Allocates a new entry in the array and returns it.

EVTAG_ARRAY_ADD_VALUE

#define EVTAG_ARRAY_ADD_VALUE	(		msg,
			member,
			value
	)		(*(msg)->base->member##_add)((msg), (value))

Adds a value to an array.

EVTAG_ARRAY_GET

#define EVTAG_ARRAY_GET	(		msg,
			member,
			offset,
			pvalue
	)		(*(msg)->base->member##_get)((msg), (offset), (pvalue))

Gets a variable at the specified offset from the array.

EVTAG_ARRAY_LEN

#define EVTAG_ARRAY_LEN	(		msg,
			member
	)		((msg)->member##_length)

Returns the number of entries in the array.

EVTAG_ASSIGN

#define EVTAG_ASSIGN	(		msg,
			member,
			value
	)		(*(msg)->base->member##_assign)((msg), (value))

Assigns a value to the member in the message.

Parameters

msg	the message to which to assign a value
member	the name of the member variable
value	the value to assign

EVTAG_ASSIGN_WITH_LEN

#define EVTAG_ASSIGN_WITH_LEN	(		msg,
			member,
			value,
			len
	)		(*(msg)->base->member##_assign)((msg), (value), (len))

Assigns a value to the member in the message.

Parameters

msg	the message to which to assign a value
member	the name of the member variable
value	the value to assign
len	the length of the value

EVTAG_GET

#define EVTAG_GET	(		msg,
			member,
			pvalue
	)		(*(msg)->base->member##_get)((msg), (pvalue))

Returns the value for a member.

Parameters

msg	the message from which to get the value
member	the name of the member variable
pvalue	a pointer to the variable to hold the value

Returns

0 on success, -1 otherwise.

EVTAG_GET_WITH_LEN

#define EVTAG_GET_WITH_LEN	(		msg,
			member,
			pvalue,
			plen
	)		(*(msg)->base->member##_get)((msg), (pvalue), (plen))

Returns the value for a member.

Parameters

msg	the message from which to get the value
member	the name of the member variable
pvalue	a pointer to the variable to hold the value
plen	a pointer to the length of the value

Returns

0 on success, -1 otherwise.

EVTAG_HAS

#define EVTAG_HAS	(		msg,
			member
	)		((msg)->member##_set == 1)

Determines if the member has been set in the message

Parameters

msg	the message to inspect
member	the member variable to test for presences

Returns

1 if it's present or 0 otherwise.

INPUT

#define INPUT   EVRPC_INPUT

Deprecated alias for EVRPC_INPUT. Not available on windows, where it conflicts with platform headers.

OUTPUT

#define OUTPUT   EVRPC_OUTPUT

Deprecated alias for EVRPC_OUTPUT. Not available on windows, where it conflicts with platform headers.

Enumeration Type Documentation

EVRPC_HOOK_RESULT

enum EVRPC_HOOK_RESULT

Return value from hook processing functions

Enumerator
EVRPC_TERMINATE	indicates the rpc should be terminated
EVRPC_CONTINUE	continue processing the rpc
EVRPC_PAUSE	pause processing request until resumed

EVRPC_HOOK_TYPE

enum EVRPC_HOOK_TYPE

Hooks for changing the input and output of RPCs; this can be used to implement compression, authentication, encryption, ...

Enumerator
EVRPC_INPUT	apply the function to an input hook
EVRPC_OUTPUT	apply the function to an output hook

Function Documentation

evrpc_add_hook()

EVENT2_EXPORT_SYMBOL void* evrpc_add_hook	(	void *	vbase,
		enum EVRPC_HOOK_TYPE	hook_type,
		int(*)(void *, struct evhttp_request *, struct evbuffer *, void *)	cb,
		void *	cb_arg
	)

adds a processing hook to either an rpc base or rpc pool

If a hook returns TERMINATE, the processing is aborted. On CONTINUE, the request is immediately processed after the hook returns. If the hook returns PAUSE, request processing stops until evrpc_resume_request() has been called.

The add functions return handles that can be used for removing hooks.

Parameters

vbase	a pointer to either struct evrpc_base or struct evrpc_pool
hook_type	either INPUT or OUTPUT
cb	the callback to call when the hook is activated
cb_arg	an additional argument for the callback

Returns

a handle to the hook so it can be removed later

See also

evrpc_remove_hook()

evrpc_free()

EVENT2_EXPORT_SYMBOL void evrpc_free

(

struct evrpc_base *

base

)

Frees the evrpc base

For now, you are responsible for making sure that no rpcs are ongoing.

Parameters

base	the evrpc_base object to be freed

See also

evrpc_init

evrpc_get_request()

EVENT2_EXPORT_SYMBOL void* evrpc_get_request

(

struct evrpc_req_generic *

req

)

accessors for request and reply

evrpc_hook_add_meta()

EVENT2_EXPORT_SYMBOL void evrpc_hook_add_meta	(	void *	ctx,
		const char *	key,
		const void *	data,
		size_t	data_size
	)

adds meta data to request

evrpc_hook_add_meta() allows hooks to add meta data to a request. for a client request, the meta data can be inserted by an outgoing request hook and retrieved by the incoming request hook.

Parameters

ctx	the context provided to the hook call
key	a NUL-terminated c-string
data	the data to be associated with the key
data_size	the size of the data

evrpc_hook_find_meta()

EVENT2_EXPORT_SYMBOL int evrpc_hook_find_meta	(	void *	ctx,
		const char *	key,
		void **	data,
		size_t *	data_size
	)

retrieves meta data previously associated

evrpc_hook_find_meta() can be used to retrieve meta data associated to a request by a previous hook.

Parameters

ctx	the context provided to the hook call
key	a NUL-terminated c-string
data	pointer to a data pointer that will contain the retrieved data
data_size	pointer to the size of the data

Returns

0 on success or -1 on failure

evrpc_hook_get_connection()

EVENT2_EXPORT_SYMBOL struct evhttp_connection* evrpc_hook_get_connection

(

void *

ctx

)

returns the connection object associated with the request

Parameters

ctx	the context provided to the hook call

Returns

a pointer to the evhttp_connection object or NULL if an error occurred

evrpc_init()

EVENT2_EXPORT_SYMBOL struct evrpc_base* evrpc_init

(

struct evhttp *

server

)

Creates a new rpc base from which RPC requests can be received

Parameters

server

a pointer to an existing HTTP server

Returns

a newly allocated evrpc_base struct or NULL if an error occurred

See also

evrpc_free()

evrpc_make_request()

EVENT2_EXPORT_SYMBOL int evrpc_make_request

(

struct evrpc_request_wrapper *

ctx

)

Makes an RPC request based on the provided context.

This is a low-level function and should not be used directly unless a custom context object is provided. Use EVRPC_MAKE_REQUEST() instead.

Parameters

ctx	a context from EVRPC_MAKE_CTX()

Returns

0 on success, -1 otherwise.

See also

EVRPC_MAKE_REQUEST(), EVRPC_MAKE_CTX()

Here is the caller graph for this function:

evrpc_make_request_ctx()

EVENT2_EXPORT_SYMBOL struct evrpc_request_wrapper* evrpc_make_request_ctx	(	struct evrpc_pool *	pool,
		void *	request,
		void *	reply,
		const char *	rpcname,
		void(*)(struct evbuffer *, void *)	req_marshal,
		void(*)(void *)	rpl_clear,
		int(*)(void *, struct evbuffer *)	rpl_unmarshal,
		void(*)(struct evrpc_status *, void *, void *, void *)	cb,
		void *	cbarg
	)

use EVRPC_GENERATE instead

Here is the caller graph for this function:

evrpc_pool_add_connection()

EVENT2_EXPORT_SYMBOL void evrpc_pool_add_connection	(	struct evrpc_pool *	pool,
		struct evhttp_connection *	evcon
	)

Adds a connection over which rpc can be dispatched to the pool.

The connection object must have been newly created.

Parameters

pool	the pool to which to add the connection
evcon	the connection to add to the pool.

Here is the call graph for this function:

evrpc_pool_free()

EVENT2_EXPORT_SYMBOL void evrpc_pool_free

(

struct evrpc_pool *

pool

)

frees an rpc connection pool

Parameters

pool	a pointer to an evrpc_pool allocated via evrpc_pool_new()

See also

evrpc_pool_new()

Here is the call graph for this function:

evrpc_pool_new()

EVENT2_EXPORT_SYMBOL struct evrpc_pool* evrpc_pool_new

(

struct event_base *

base

)

creates an rpc connection pool

a pool has a number of connections associated with it. rpc requests are always made via a pool.

Parameters

base	a pointer to an struct event_based object; can be left NULL in singled-threaded applications

Returns

a newly allocated struct evrpc_pool object or NULL if an error occurred

See also

evrpc_pool_free()

evrpc_pool_remove_connection()

EVENT2_EXPORT_SYMBOL void evrpc_pool_remove_connection	(	struct evrpc_pool *	pool,
		struct evhttp_connection *	evcon
	)

Removes a connection from the pool.

The connection object must have been newly created.

Parameters

pool	the pool from which to remove the connection
evcon	the connection to remove from the pool.

evrpc_pool_set_timeout()

EVENT2_EXPORT_SYMBOL void evrpc_pool_set_timeout	(	struct evrpc_pool *	pool,
		int	timeout_in_secs
	)

Sets the timeout in secs after which a request has to complete. The RPC is completely aborted if it does not complete by then. Setting the timeout to 0 means that it never timeouts and can be used to implement callback type RPCs.

Any connection already in the pool will be updated with the new timeout. Connections added to the pool after set_timeout has be called receive the pool timeout only if no timeout has been set for the connection itself.

Parameters

pool	a pointer to a struct evrpc_pool object
timeout_in_secs	the number of seconds after which a request should timeout and a failure be returned to the callback.

Here is the call graph for this function:

evrpc_register_generic()

EVENT2_EXPORT_SYMBOL int evrpc_register_generic	(	struct evrpc_base *	base,
		const char *	name,
		void(*)(struct evrpc_req_generic *, void *)	callback,
		void *	cbarg,
		void *(*)(void *)	req_new,
		void *	req_new_arg,
		void(*)(void *)	req_free,
		int(*)(void *, struct evbuffer *)	req_unmarshal,
		void *(*)(void *)	rpl_new,
		void *	rpl_new_arg,
		void(*)(void *)	rpl_free,
		int(*)(void *)	rpl_complete,
		void(*)(struct evbuffer *, void *)	rpl_marshal
	)

Function for registering a generic RPC with the RPC base.

Do not call this function directly, use EVRPC_REGISTER() instead.

See also

EVRPC_REGISTER()

Here is the call graph for this function:

evrpc_register_rpc()

EVENT2_EXPORT_SYMBOL int evrpc_register_rpc	(	struct evrpc_base *	base,
		struct evrpc *	rpc,
		void(*)(struct evrpc_req_generic *, void *)	cb,
		void *	cb_arg
	)

Low level function for registering an RPC with a server.

Use EVRPC_REGISTER() instead.

See also

EVRPC_REGISTER()

Here is the call graph for this function:

Here is the caller graph for this function:

evrpc_remove_hook()

EVENT2_EXPORT_SYMBOL int evrpc_remove_hook	(	void *	vbase,
		enum EVRPC_HOOK_TYPE	hook_type,
		void *	handle
	)

removes a previously added hook

Parameters

vbase	a pointer to either struct evrpc_base or struct evrpc_pool
hook_type	either INPUT or OUTPUT
handle	a handle returned by evrpc_add_hook()

Returns

1 on success or 0 on failure

See also

evrpc_add_hook()

Here is the caller graph for this function:

evrpc_request_done()

EVENT2_EXPORT_SYMBOL void evrpc_request_done

(

struct evrpc_req_generic *

req

)

completes the server response to an rpc request

Here is the call graph for this function:

evrpc_request_get_pool()

EVENT2_EXPORT_SYMBOL struct evrpc_pool* evrpc_request_get_pool

(

struct evrpc_request_wrapper *

ctx

)

accessors for obscure and undocumented functionality

evrpc_resume_request()

EVENT2_EXPORT_SYMBOL int evrpc_resume_request	(	void *	vbase,
		void *	ctx,
		enum EVRPC_HOOK_RESULT	res
	)

resume a paused request

Parameters

vbase	a pointer to either struct evrpc_base or struct evrpc_pool
ctx	the context pointer provided to the original hook call

evrpc_send_request_generic()

EVENT2_EXPORT_SYMBOL int evrpc_send_request_generic	(	struct evrpc_pool *	pool,
		void *	request,
		void *	reply,
		void(*)(struct evrpc_status *, void *, void *, void *)	cb,
		void *	cb_arg,
		const char *	rpcname,
		void(*)(struct evbuffer *, void *)	req_marshal,
		void(*)(void *)	rpl_clear,
		int(*)(void *, struct evbuffer *)	rpl_unmarshal
	)

Function for sending a generic RPC request.

Do not call this function directly, use EVRPC_MAKE_REQUEST() instead.

See also

EVRPC_MAKE_REQUEST()

Here is the call graph for this function:
