event_struct.h File Reference

#include <event2/event-config.h>
#include <event2/util.h>
#include <event2/keyvalq_struct.h>

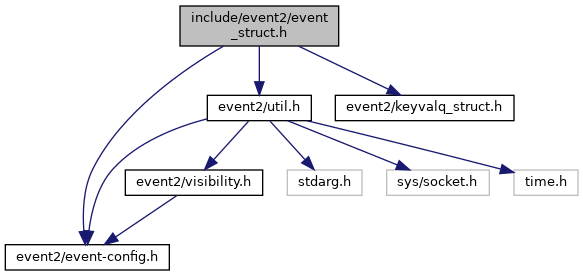

Include dependency graph for event_struct.h:

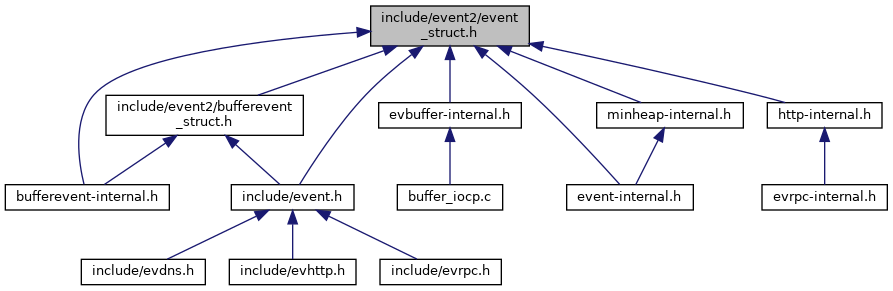

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	event_callback
struct	event

Macros
#define	EVLIST_TIMEOUT   0x01
#define	EVLIST_INSERTED   0x02
#define	EVLIST_SIGNAL   0x04
#define	EVLIST_ACTIVE   0x08
#define	EVLIST_INTERNAL   0x10
#define	EVLIST_ACTIVE_LATER   0x20
#define	EVLIST_FINALIZING   0x40
#define	EVLIST_INIT   0x80
#define	EVLIST_ALL   0xff
#define	EVENT_DEFINED_TQENTRY_
#define	TAILQ_ENTRY(type)
#define	EVENT_DEFINED_TQHEAD_
#define	TAILQ_HEAD(name, type)
#define	EVENT_DEFINED_LISTENTRY_
#define	LIST_ENTRY(type)
#define	EVENT_DEFINED_LISTHEAD_
#define	LIST_HEAD(name, type)

Functions
	TAILQ_HEAD (event_list, event)
	LIST_HEAD (event_dlist, event)

Detailed Description

Structures used by event.h. Using these structures directly WILL harm forward compatibility: be careful.

No field declared in this file should be used directly in user code. Except for historical reasons, these fields would not be exposed at all.

Macro Definition Documentation

LIST_ENTRY

#define LIST_ENTRY

(

type

)

Value:

struct {                                \
    struct type *le_next;   /* next element */          \
    struct type **le_prev;  /* address of previous next element */  \
}

LIST_HEAD

#define LIST_HEAD	(		name,
			type
	)

Value:

struct name {                               \
    struct type *lh_first;  /* first element */         \
    }

TAILQ_ENTRY

#define TAILQ_ENTRY

(

type

)

Value:

struct {                                \
    struct type *tqe_next;  /* next element */          \
    struct type **tqe_prev; /* address of previous next element */  \
}

TAILQ_HEAD

#define TAILQ_HEAD	(		name,
			type
	)

Value:

struct name {                   \
    struct type *tqh_first;         \
    struct type **tqh_last;         \
}
